Backsaver ET-Roller 7 Electric Roller for fire hoses up to 6" powered by Milwaukee batteries
Compact battery-operated Foldable Fire Hose Roller with a powerful built-in electric motor powered by two Milwaukee batteries minimizes the time required for reeling unwound fire hoses after action or training. The 4-wheel chassis ensures high comfort during winding and subsequent handling of heavy fire hoses. The device can be also used for emptying filled fire hoses or for controlled unwinding of an already wound hose.
Main advantage
Benefits
- 660W electric motor powered by two Milwaukee batteries

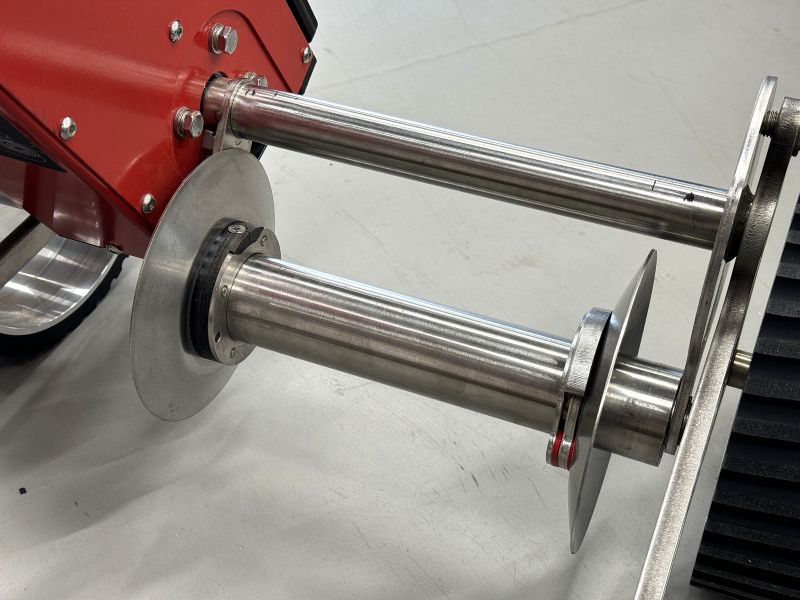

- A unique Quick Release Mechanism for swift replacement of carriers designed for winding various sizes of fire hoses
Foldable 4-wheel chassis for high comfort during winding of heavy fire hoses - Telescopic handlebars for easy operation of the roller
- Quick and convenient winding of both dry and wet fire hoses up to 6"
- Two types of removable carriers (DRUM or 2 FORKS) according to the size of the hose to be wound up
- Suitable for various winding methods – smooth winding of the hose by the coupling as well as hoses folded in half
- Intelligent motor control system – immediate signal in case of overload, e.g., due to hose entanglement

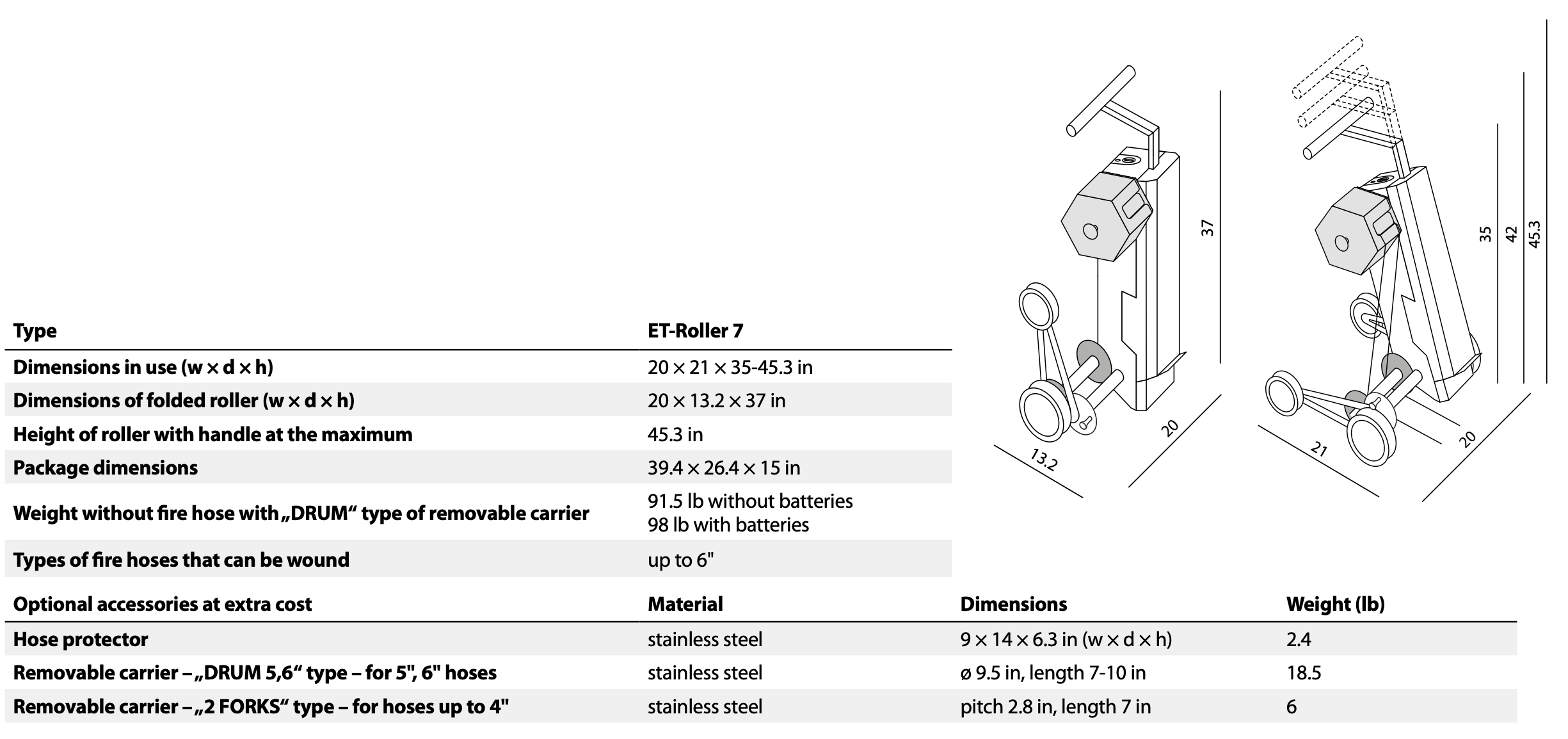

Technical details
Robust steel frame. The heavy-duty parts of all the shafts are made of high-strength steel. Durable surface finish – powder-coated or galvanized. Powerful DC motor, water and dust resistant. Motor powered by two Milwaukee batteries (not included). Unique design ensuring high stability during winding and allows for easy handling of both the winder and the wound hose. A foldable 4-wheel chassis for comfortable winding and subsequent transport of large and heavy fire hoses with minimal strain on the back and arms. Quick Release Mechanism for swift carrier replacement, allowing the winding of fire hoses of various sizes. As an optional accessory we recommend the „hose protector“ to prevent abrasion of the fire hose and its fittings during the winding process.

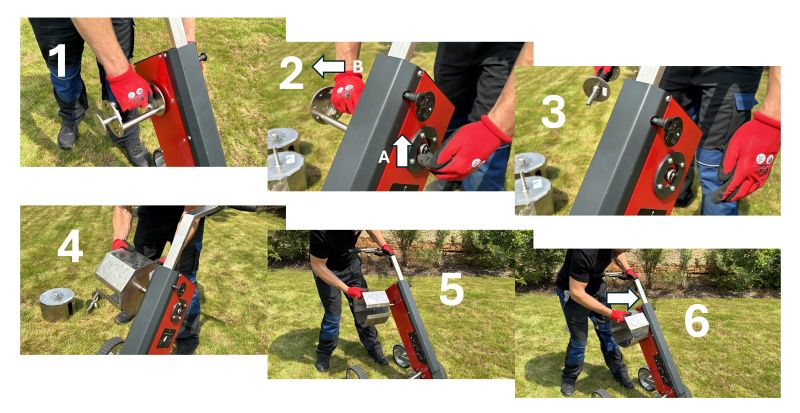

Principle

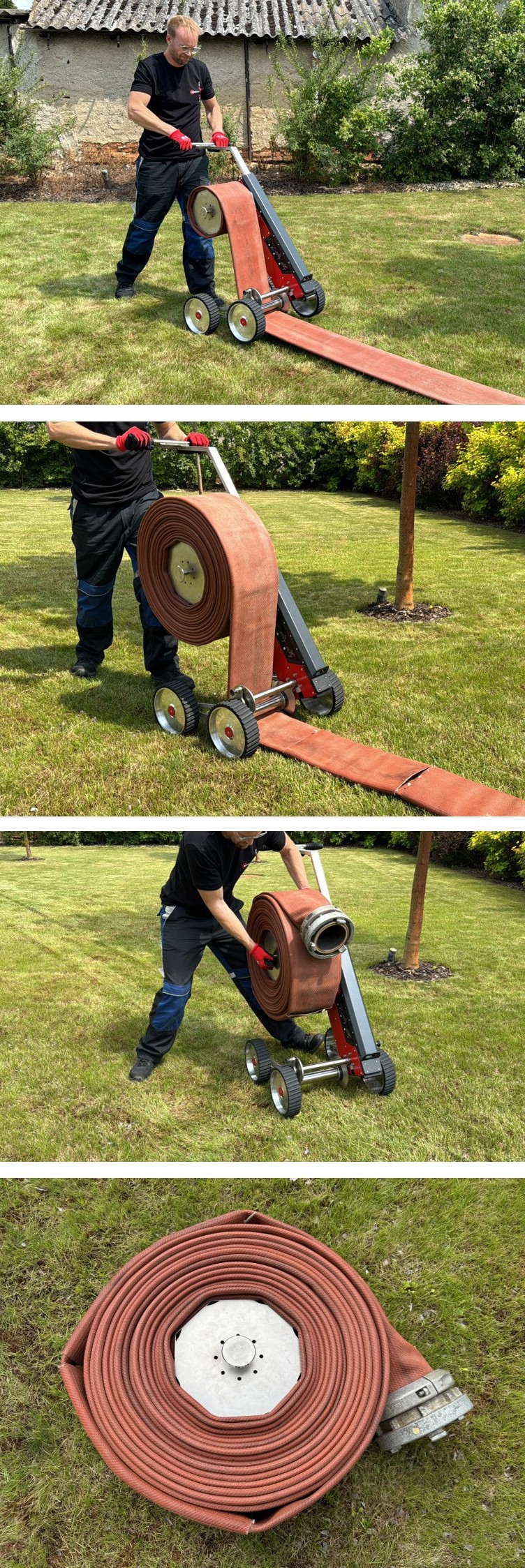

The roller is very easy and quick to operate. Fit the straightened fire hose onto the selected type of removable carrier. Set the main switch to winding mode – ON. Press the WORK button on the handle and wind the full length of the hose. Then turn off the roller by changing to the position OFF. We can comfortably take the fire hose off thanks to the removable carrier immediately after winding, or if it needs to be moved closer, for example to the fire truck, we can leave it on a roller and take it to its destination, where it is subsequently removed from the roller. The roller can also be used for convenient draining water from the filled hose by pulling it over guiding coil or for controlled unwinding wound hoses using the REVERSE function.
Safety
Safety limit on winding power (automatically switches off
if limit is excessively exceeded)
Smooth start, immediate stop
Safe working voltage – 2 × 18 V
Usage
